Contact Card Interface
P/N 74-01-1001

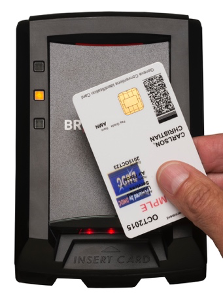

ENTRYPOINT 1-FACTOR CARD-ONLY READERS
Contactless Interface
P/N 74-01-3001
Contact & Contactless Interface
P/N 74-01-2002
Description
EntryPoint 1-Factor Readers are available in Contact, Contactless and Dual Interface models to operate with industry standard Wiegand and OSDP based access control systems. EntryPoint Readers upgrade existing systems to be interoperable with all ISO and FIPS-201 smart card credentials.
Features:
- Reads all CAC, PIV, TWIC and PIV-I Credentials
- Accepts IDFACTORS CryptoID Cards
- Illuminated Contact Card Slot with Protective Shutter Resists Foreign Objects and Wind Driven Rain
- German made Card Connector Rated to 500,000 insertions
- Illuminated Keypad and Contact Card Slot
- Meets ISO 7816 Contactless and ISO 14443 Contactless Standards
- Includes both Terminal Block & RJ-45 Connectors for access system connection
- Supports 15 Wiegand formats
- Configurable LED, Speaker and PIN submission formats
- Optional Mag Stripe & OSDP Communication
- Forward Compatible – Field Flash Programmable via USB Printer Port
Notes:
- The FASC-N is read from the free-read CHUID on the card. This method has been deprecated by NIST in FIPS-201-2 which recommends CAK and PAK as the method of read the FASC-N.

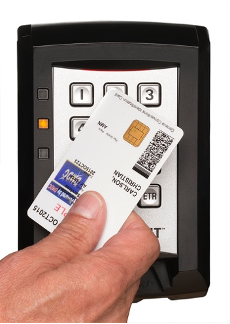

ENTRYPOINT 2-FACTOR CARD + PIN READERS
Contact Interface + PIN Authentication
P/N 74-01-1002
Contactless Interface + Pin Authentication
P/N 74-01-3002
Contact & Contactless + PIN Authentication
P/N 74-01-2003
Description
EntryPoint 2-Factor Readers are available in Contact, Contactless and Dual Interface models to operate with industry standard Wiegand and OSDP based access control systems. EntryPoint Readers upgrade existing systems to be interoperable with all ISO and FIPS-201 smart card credentials.
Features:
- Reads all CAC, PIV, TWIC and PIV-I Credentials
- Accepts IDFACTORS CryptoID Cards
- Illuminated Contact Card Slot with Protective Shutter Resists Foreign Objects and Wind Driven Rain
- German made Card Connector Rated to 500,000 insertions
- Illuminated Keypad and Contact Card Slot
- Durable Weatherized Telephone Style Keypad with Metal Keys
- Meets ISO 7816 Contactless and ISO 14443 Contactless Standards
- Includes both Terminal Block & RJ-45 Connectors
- Supports 15 Wiegand formats
- Configurable LED, Speaker and PIN submission formats
- Optional Mag Stripe & OSDP Communication
- Forward Compatible – Field Flash Programmable via USB Printer Port
Notes:
- The FASC-N is read from the free-read CHUID on the card. This method has been deprecated by NIST in FIPS-201-2 which recommends CAK and PAK as the method of read the FASC-N.
- Federal Government Standards specify the PIN be sent to the CAC/PIV credential and not to the access system. Convention in the security industry is to send the Pin to the system controller. IDFACTORS default to Government standards but the Readers also support Pin to system which is configurable in the Reader.
TRUSTPOINT 1-FACTOR CARD ONLY READERS WITH PKI
Contact Card Authentication
P/N 74-01-4000
Contactless Card Authentication
P/N 74-01-4011
Contact or Contactless Card Authentication
P/N 74-01-4012
Description
TrustPoint Contact, Contactless Readers and Dual Interface Readers are equipped with a FIPS-140 Crypto Module. The Reader issues a PKI challenge-response to verify the Card Authentication Key (CAK) over either the contact or contactless interface.
All TrustPoint Readers integrate with industry standard Wiegand or OSDP based access control systems, enabling an agency to upgrade existing systems to utilize PIV & CAC per standards and guidance.
TrustPoint delivers the most secure form of single factor authentication available per NIST 800-116.
Features:
- Operates with all CAC, PIV, TWIC, PIV-I & Crypto ID Credentials
- Illuminated Contact Card Slot with Protective Shutter Resists Foreign Objects and Wind Driven Rain
- German made Card Connector Rated to 500,000 insertions
- Illuminated Keypad and Contact Card Slot
- Meets ISO 7816 Contactless and ISO 14443 Contactless Standards
- Includes both Terminal Block & RJ-45 Connectors
- Total time for CAK challenge-response is under 2.0 seconds for most PIV & CAC credentials
- Supports 15 Wiegand formats
- Forward Compatible – Field Flash Programmable via USB Printer Port

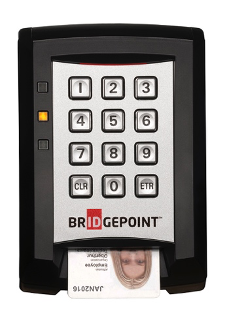

TRUSTPOINT 2-FACTOR CARD ONLY READERS WITH PKI
Contact with PIN Authentication & PKI Challenge Response to PAK
P/N 74-01-4001
Contactless with Pin Authentication & PKI Challenge Response to CAK
P/N 74-01-4002
Contact or Contactless Redundancy with PIN Authentication & PKI Challenge Response
P/N 74-01-4003
Description
TrustPoint 2-Factor Readers are available in Contact, Contactless or Dual-Interface models. They interface with industry standard Wiegand & OSDP based access control systems enabling an agency to upgrade existing systems to utilize all government issued PIV, CAC, TWIC & PIV-I credentials.
The Readers can be set to 1-Factor to use the CAK over the Contact or Contactless Interface. In 2-Factor mode only the Contact Interface is active and the Reader uses the PIN to Card and the PAK for authentication.
TrustPoint delivers the most secure form of two-factor authentication available per FIPS-201 & NIST 800-116.
Features:
- On-board Cryptographic Engine with Hardware Acceleration Supports RSA, AES, 3DES, ECC and SHA algorithms
- In Contactless Mode, Performs PKI Challenge to the Card Authentication Key (CAK) in 2.0 seconds for RSA-2048 certificates
- In Contact Mode, Performs PKI Challenge to the Personal Certificate Key (PAK) in 1.0 second after PIN Entry.
- Transmits FASC-N in Format Compatible to Access System (Wiegand or OSDP)
- Vertical Card Slot with Protective Shutter Resists Foreign Objects & Rain
- Easy-to-use Durable Weatherized Telephone Keypad
- LED illuminated Card Slot & Keypad for Night Use
- Terminal Block & RJ-45 Connectors
- Supports FIPS-201 and ISO 7816 & 14443 Standards
- Forward Compatible – Field Flash Programmable via USB Printer Port
